SPMEProbe item number：ZZ-SPME-06-s
Analysis condition:
Sample: 2 g celery in 20 ml headspace bottle
Extraction temperature: 40 ºC; Extraction time: 60 min
Desorption time: 2 min; Desorption temperature: 250 ºC
Sample inlet: GC
Injection method: manual
Inlet: 250 ºC shunt, shunt ratio: 10:1
Column: DB-5ms: 50 m × 250 μm × 0.25 μm
Programmed heating: Initial temperature 40 ºC for 5 min, 10 ºC/min up to 250 ºC for 5 min
Acquisition mode: Full scan, scanning range: 30-500 m/z
Ion source: 230 ºC, MS quadrupole: 150 ºC

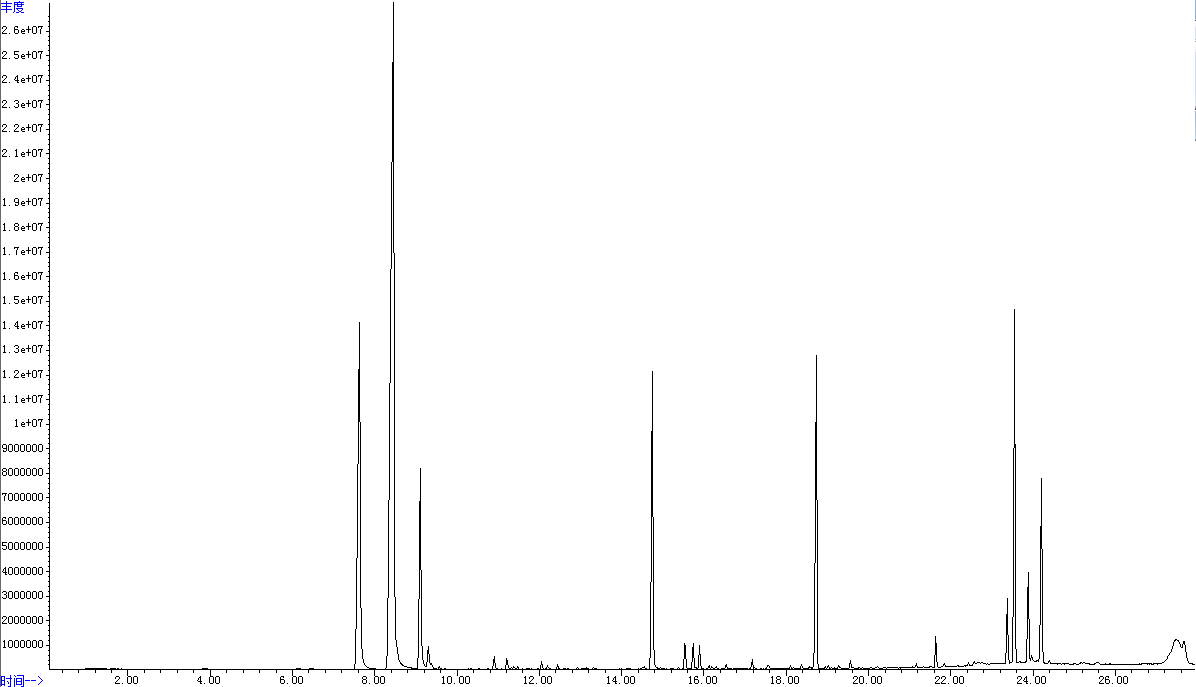

Total ion flow chromatogram of celery odor detected by SPME-GC/MS
Test results:
A total of 18 organic compounds were detected, including 2 alcohols, 1 alkane, 9 alkenes, 1 aromatic hydrocarbon, 1 ester, 1 phenol and 3 ketones, respectively, the contents of which were shown in the following table. The test results showed that the content of limonene in compound No. 2 was the highest, accounting for 41.646% of the total.
SPME-GC-MSDetection result
序号 | 化合物 | 保留时间 | 峰面积百分比总量（%） |
1 | πPinene(π 蒎烯) | 7.632 | 16.186 |
2 | Limonene(柠檬烯) | 8.458 | 41.646 |
3 | 3,7-dimethyl-1,3,6-Octatriene(3,7-二甲基-1,3,6-辛三烯) | 9.109 | 5.872 |
4 | 1-methyl-4-(1-methylethyl)-1,4-Cyclohexadiene(1-甲基-4-（1-甲基乙基）-1,4-环己二烯) | 9.299 | 0.575 |
5 | 6-Butyl-1,4-cycloheptadiene(6-丁基-1,4-环庚二烯) | 10.901 | 0.354 |
6 | 3-Hexen-1-ol(3-己烯-1-醇) | 11.211 | 0.264 |
7 | Caryophyllene(石竹烯) | 14.747 | 7.902 |
8 | πCaryophyllene(π石竹烯) | 15.540 | 0.609 |
9 | 2,4a,5,6,7,8-hexahydro-3,5,5,9-tetramethyl-1H-Benzocycloheptene(2,4a，5,6,7,8-六氢 - 3,5,5,9-三甲基-1H-苯并环丁烯) | 15.737 | 0.551 |
10 | 2-methyl-5-(1-methylethenyl)-2-Cyclohexen-1-ol, acetate(2-甲基-5-（1-甲基乙烯基）-2-环己烯-1-醇乙酸酯) | 15.893 | 0.474 |
11 | 2-methyl-Naphthalene(2-甲基萘) | 17.172 | 0.178 |
12 | 3,7,11,15-Tetramethyl-2-hexadecen-1-ol(3,7,11,15-四甲基-2-十六碳烯-1-醇) | 18.735 | 8.395 |
13 | 1,5,5-Trimethyl-6-(3-methyl-buta-1,3-dienyl)-cyclohexene(1,5,5-三甲基-6-（3-甲基丁-1,3-二烯基）环己烯) | 19.561 | 0.179 |
14 | 5-Iodo-2,7-dioxa-tricyclo[4.3.1.0(3,8)]decane(5-碘-2,7-二氧杂 - 双环[4.3.1.0（3,8）]癸烷) | 21.635 | 0.603 |
15 | 2-chloro-1-(2,5-dimethylphenyl)-2-methyl-1-Propanone(2-氯-1-（2,5-二甲基苯基）-2-甲基-1-丙酮) | 23.370 | 1.435 |
16 | 1,2,3,5,6,7-Hexahydro-inden-4-one(1,2,3,5,6,7-六氢茚-4-酮) | 23.553 | 8.068 |
17 | 5,7,8-trimethyl-Dihydrocoumarin(5,7,8-三甲基 - 二氢香豆素) | 23.881 | 2.079 |
18 | 4-heptyl-Phenol(4-庚基苯酚) | 24.203 | 4.630 |
