PMEProbe item number:ZZ-SPME-06-s
Analysis condition:
Sample: 5 ml Luzhou-flavor liquor sample in 20 ml headspace bottle
Extraction temperature: 50 ºC; Extraction time: 60 min; Mixing speed: 250 rpm
Desorption time: 2 min; Desorption temperature: 250 ºC
Sample inlet: GC
Injection method: manual
Inlet: 250 ºC without shunt, purge flow at shunt outlet: 60 mL/min starting at 2 min
Column: DB-5ms: 30 m × 250 μm × 0.25 μm
Programmed heating: Start at 40 ºC, rise to 100 ºC at 2 ºC/min, then rise to 200 ºC at 4 ºC/min for 3 min
Acquisition mode: Full scan, scanning range: 35-450 m/z
Ion source: 230 ºC, MS quadrupole: 150 ºC

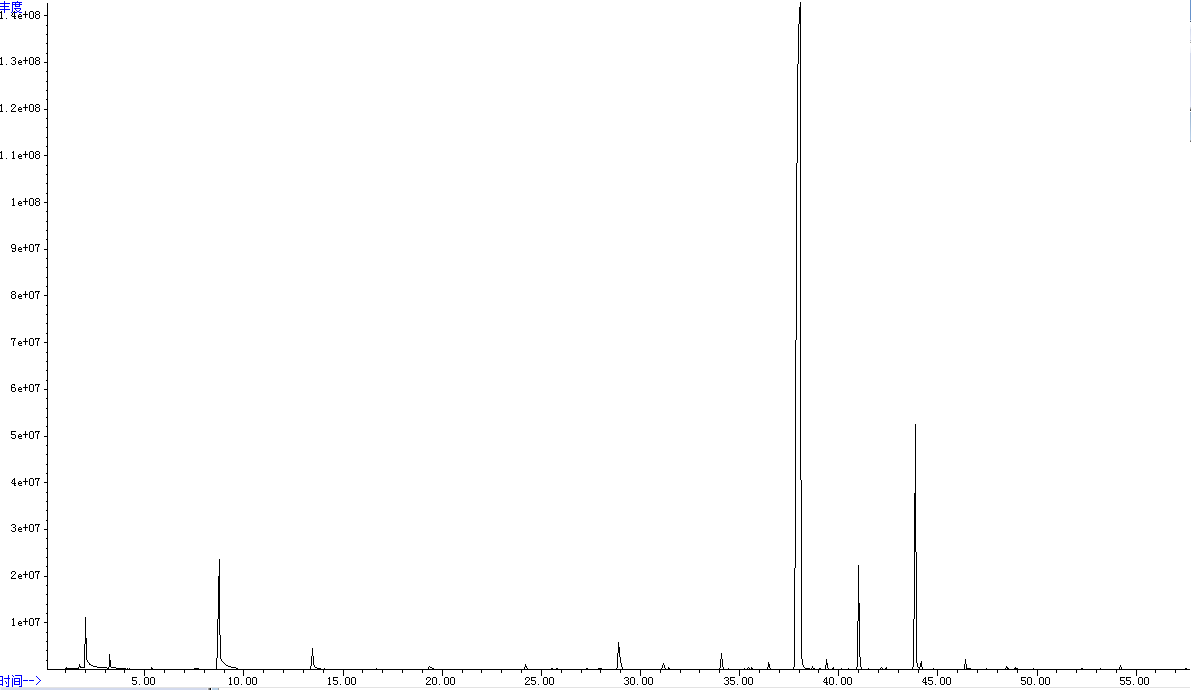

Determination of substances in Luzhou-flavor liquor by SPME-GC/MS total ion flow chromatography
Test results:
A total of 18 organic compounds were detected, including 2 alcohols, 8 acids, 5 esters and 3 phenols, with their respective contents as shown in the following table. The test results showed that compound No. 11 had the highest content of caproic acid, accounting for 74.905% of the total.
SPME-GC-MSDetection result
序号 | 化合物 | 保留时间 | 峰面积百分比总量(%) |
1 | Ethanol(乙醇) | 2.013 | 1.704 |
2 | Butanoic acid ethyl ester(丁酸乙酯) | 3.239 | 0.239 |
3 | Pentanoic acid ethyl ester(戊酸乙酯) | 5.349 | 0.042 |
4 | Hexanoic acid ethyl ester(己酸乙酯) | 8.752 | 6.229 |
5 | 2-hydroxy-Propanoic acid ethyl ester(2-羟基丙酸乙酯) | 13.458 | 1.147 |
6 | 2-hydroxy-4-methyl-Pentanoic acid ethyl ester(2-羟基-4-甲基 - 戊酸乙酯) | 24.212 | 0.260 |
7 | Butanoic acid(丁酸) | 28.885 | 1.652 |
8 | 3-methyl-Butanoic acid(3-甲基丁酸) | 31.165 | 0.320 |
9 | Pentanoic acid(戊酸) | 34.081 | 0.659 |
10 | 4-methyl-Pentanoic acid(4-甲基 - 戊酸) | 36.473 | 0.219 |
11 | Hexanoic acid(己酸) | 38.054 | 74.905 |
12 | Phenylethyl Alcohol(苯乙醇) | 39.399 | 0.336 |
13 | Heptanoic acid(庚酸) | 41.008 | 3.270 |
14 | Phenol(苯酚) | 42.175 | 0.061 |
15 | Octanoic Acid(辛酸) | 43.871 | 8.434 |
16 | 4-methyl-Phenol (4-甲基苯酚) | 44.155 | 0.228 |
17 | 4-methyl-Phenol (4-甲基苯酚) | 46.402 | 0.215 |
18 | π(1-hydroxyethyl)-Benzenepropanoic acid (π(1-羟乙基) - 苯丙酸) | 48.477 | 0.082 |
