Determination of ochratoxin in flour by multifunctional purification column and liquid chromatography

Determination of ochratoxin in flour by multifunctional purification column and liquid chromatography


  • Determination of ochratoxin in flour by multifunctional purification column and liquid chromatography

Application of ochratoxin in flour



Sample extraction:

Weigh 5g flour sample into a 50mL centrifuge tube, add 20ml extraction solution (84% acetonitrile-aqueous solution) and mix well


 Ultrasonic extraction 30min, put into centrifuge (8000r/min centrifuge 20min), take supernatant as sample extraction solution

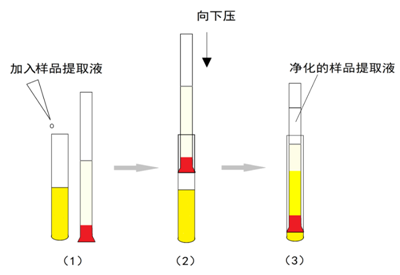

Sample purification:

Step 1: Add 5mL of the sample extract to the test tube

Step 2: Insert the rubber tip of the column into the test tube from the top and press the column down to the bottom of the test tube

Step 3: Pour the purified sample extract from the upper part of the column into the sample bottle or EP tube

Step 4: Take 2mL purified extract, blow nitrogen to dry, redissolve with 0.4mL initial mobile phase, filter through microporous membrane, machine analysis



HPLCDetection condition:

 Mobile phase: acetonitrile-water-glacial acetic acid (96+102+2)


 Chromatographic column: C18 (column length 250mm, column inner diameter 4.6mm, packing particle size 5μm)


Flow rate: 1.0mL/min


 column temperature: 35℃


 Injection size: 50μL


Detection wavelength: excitation wavelength 333nm, emission wavelength 460nm


Experimental result:


  OTA

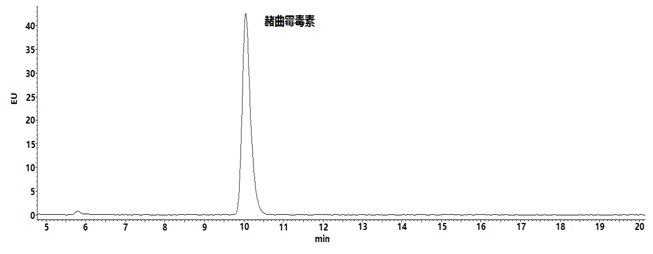

Ochratoxin liquid chromatography

(Ochratoxin concentration was 20.0ng/mL)





  OTA

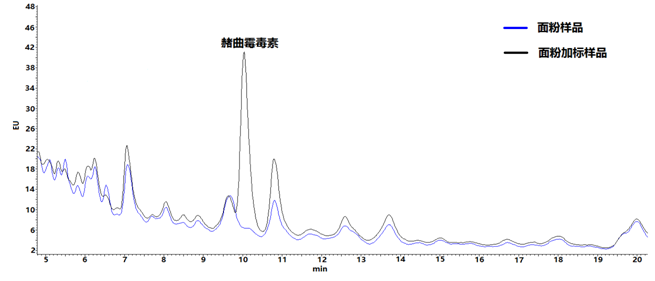

Comparison of flour sample and flour labeling sample

(Ochratoxin concentration is 16.0ng/g)


The minimum detection limit, recovery rate and repeatability of flour samples

(Ochratoxin concentration 16.0ng/g)


赭曲霉毒素

最低检出限(ng/g

回收率(%

重复性RSDn=3,%

OTA

0.07

85.8

3.25


Key word:MycotoxinPurificationColumns
