SPME探针货号:ZZ-SPME-06-z
Probe item number:
Sample: 2 g cooked potatoes in 20 ml top empty bottle
Extraction temperature: 50 ºC; Extraction time: 30 min
Desorption time: 2 min; Desorption temperature: 250 ºC
Sample inlet: GC
Injection method: CTC PAL ALS automatic injector
Inlet: 250 ºC without shunt, purge flow at shunt outlet: 60 mL/min starting at 0.75 min
Column: DB-5ms: 30 m × 250 μm × 1 μm
Programmed heating: Initial temperature 40 ºC for 5 min, 10 ºC/min up to 270 ºC for 5 min
Acquisition mode: Full scan, scanning range: 30-300 m/z
Ion source: 230 ºC, MS quadrupole: 150 ºC

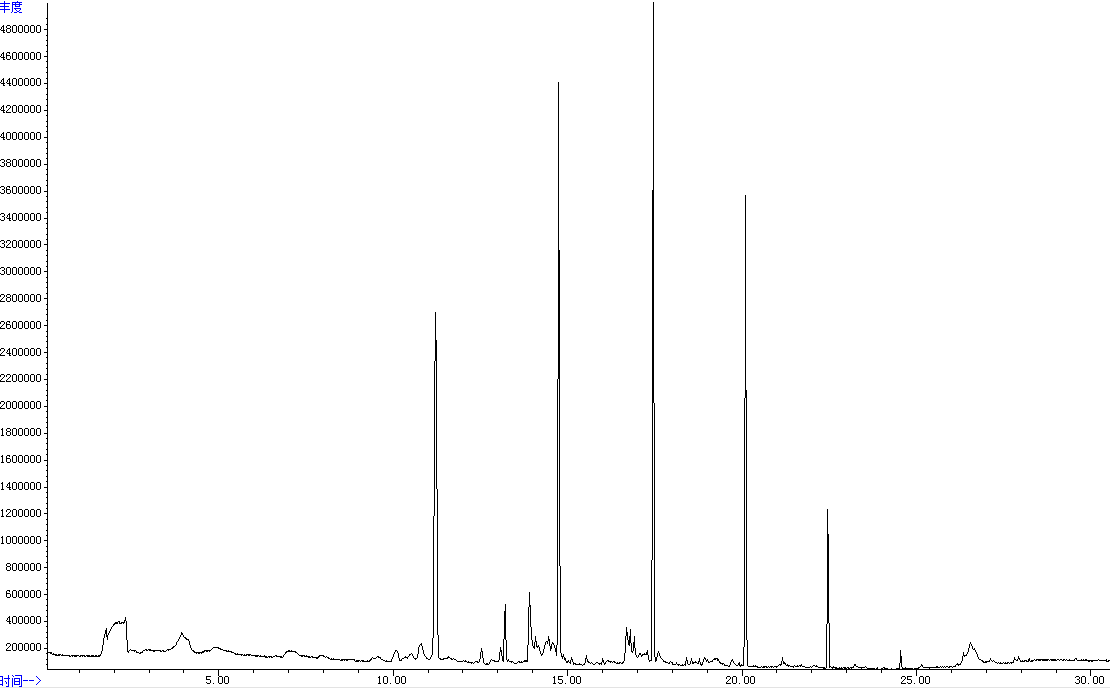

Determination of substances in cooked potatoes by SPME-GC/MS total ion flow chromatography
Test results:
A total of 6 organic compounds were detected, including 1 aldehyde, 1 olefin, 3 aromatic hydrocarbons and 1 ketone, respectively, with their contents as shown in the following table. The test results showed that compound No. 3 had the highest content of 3- (methylthiophenyl) propionaldehyde, accounting for 52.871% of the total.
SPME-GC-MSDetection result
序号 | 化合物 | 保留时间 | 峰面积百分比总量(%) |
1 | 5-(1-methylethylidene)-1,3-Cyclopentadiene(5-(1-甲基亚乙基)-1,3-环戊二烯) | 12.534 | 18.054 |
2 | p-Xylene(对二甲苯) | 13.088 | 15.747 |
3 | 3-(methylthio)-Propanal(3-(甲硫基)丙醛) | 13.204 | 52.871 |
4 | 1,3-dichloro-Benzene(1,3-二氯苯) | 15.533 | 6.671 |
5 | 1-benzyloxy-5-diethylamino-2,4-dinitro-Benzene (1-苄基-5-乙基氨基-2,4-二硝基苯) | 16.013 | 3.628 |
6 | 5-Methyl-6-heneicosen-11-one(5-甲基-6- heneicosane-11-酮) | 18.558 | 3.030 |
